864 Collection by Fireplace Xtrordinair
Gas Fireplace
FOUR MODELS – The 864 Collection is comprised of four large sized models featuring 864 square inches of glass. The size and heating capacities of these fireplaces are ideal for providing warmth to living rooms and other large spaces in the home. This collection includes four models that have brand new features, such as Ember-Glo ™, adjustable overhead Accent Lights, your choice of 10-piece Birch or Classic Oak Log Sets, and the CoolSmart TV Wall ™ option.
Heating Capacity
1,400 – 2,000 sq. ft.
BTUs
31,000 – 40,000
Fuel Type
LP or Natural Gas
Viewing Area
760 sq. in.
Size
4 Sizes Available
Customizations
Designer trims or faces, log sets, wall kits
| Model8 | 864 TRV 31k Deluxe / Clean Face | 864 TV 40k Deluxe / Clean Face |
| Weight | 205 lb. | 155 lb. |
| Appliance Width | 41″ | 41″ |
| Appliance Height | 38-1/4″ | 38-1/4″ |
| Appliance Depth | 20-3/4″ | 20-3/4″ |
| Heating Capacity | Up to 1,400 sq. ft. | Up to 2,000 sq. ft. |
| BTU Input Per Hour | 10,000 (NG) / 8,000 (LP) – 31,000 (NG/LP) | 11,000 (NG) / 12,000 (LP) – 40,000 (NG/LP) |
| Steady State Efficiency | Up to 80.38% (NG), 81.21% (LP) | Up to 82.04% (NG), 83.93% (LP) |
| Glass Viewing Area | 34-1/4″ W x 22-1/4″ H 758.8 sq. in. |
34-1/4″ W x 22-1/4″ H 758.8 sq. in. |
| Fuel Type | LP or Natural Gas | LP or Natural Gas |
| Remote Control | Included | Included |
| Convection Fan | Included | Included |
| Accent Lights | Included | Included |
| TV Wall Kit | Optional | Optional |
| Exhaust Vent Kit | Optional | Optional |
| Venting | 8″ (203mm) Diameter Vent Top or Rear Configuration |
8″ (203mm) Diameter Vent Top Configuration |
Models
864 TRV 31k Deluxe
864 TRV 31k Clean Face
864 TV 40k Deluxe
864 TV 40k Clean Face
Designer Faces and Trims

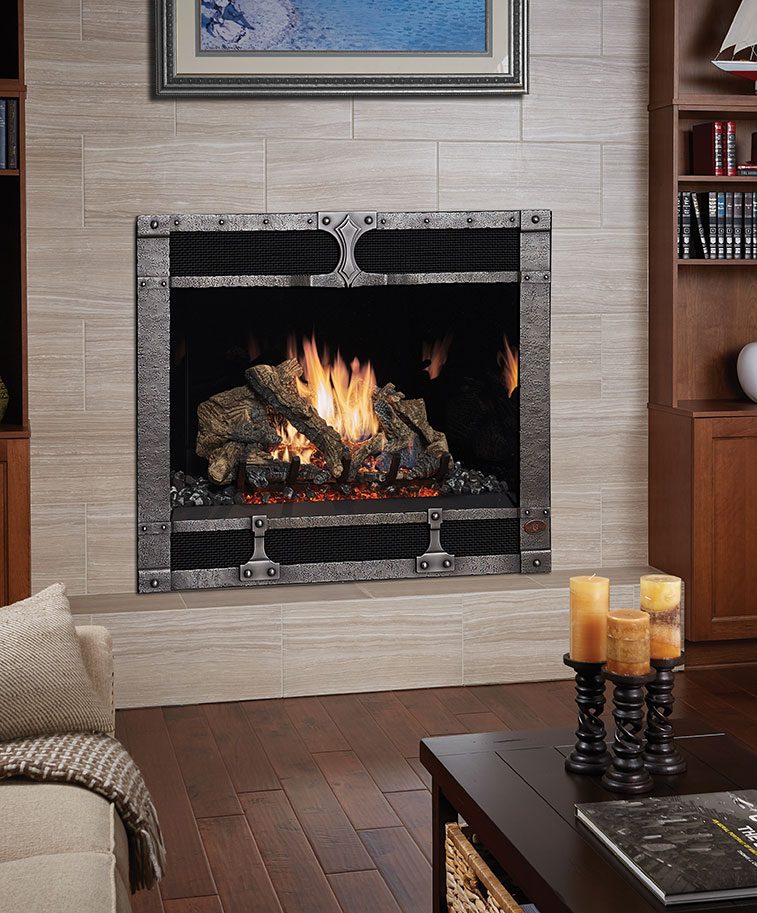

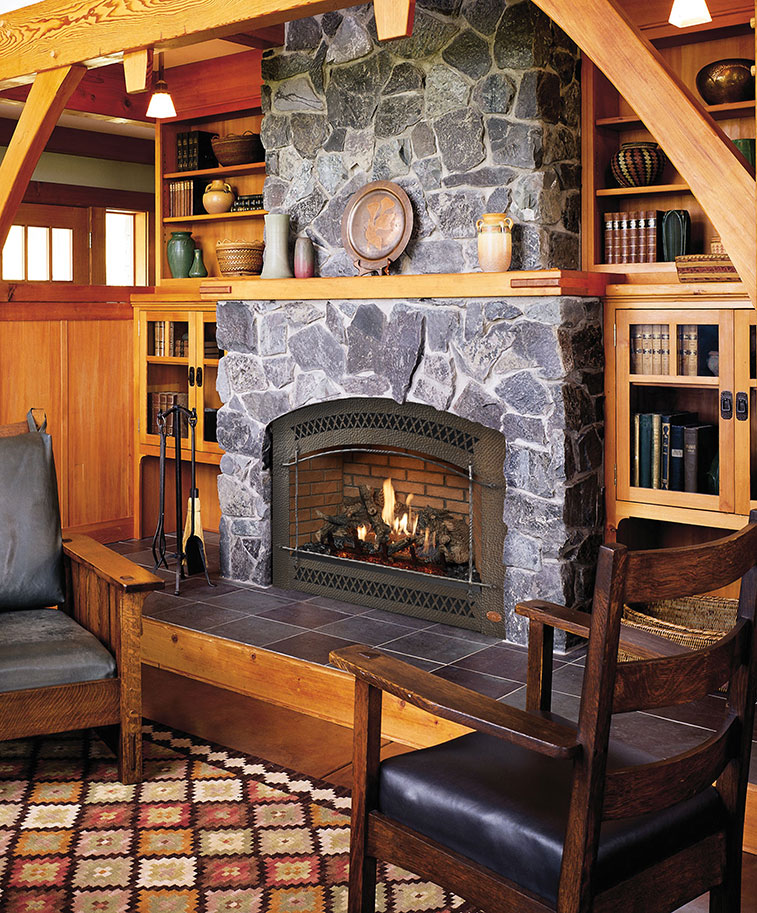

864 TRV 31k Deluxe:
Classic Arch, Black Painted
French Country, Black Painted
Wilmington, Black Painted
Basic Grills, Black Painted
Mission Grills, Black Painted
Basic Louvers, Black Painted
Metropolitan, Black Painted
Rectangular Double Door, Black Painted
Timberline, Charcoal Painted
Ironworks, Burnished Patina
Artisan, Charcoal Painted
Artisan, Bronze Patina
Metalsmith, Charcoal Painted

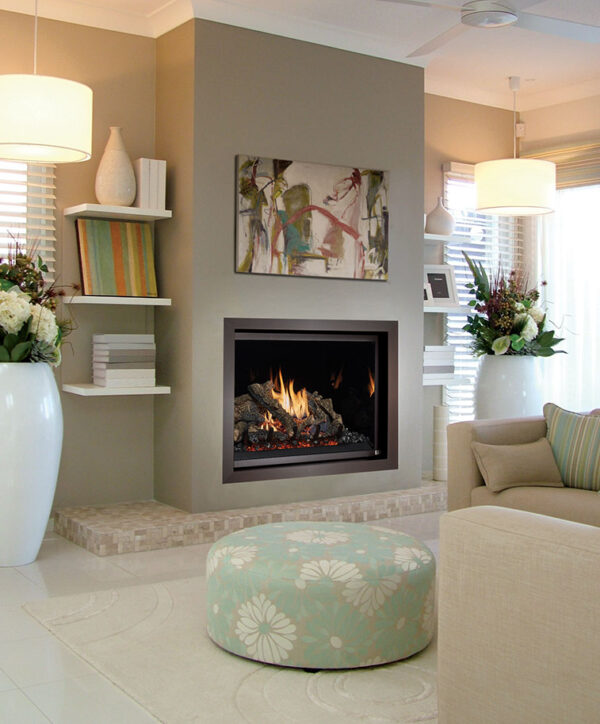

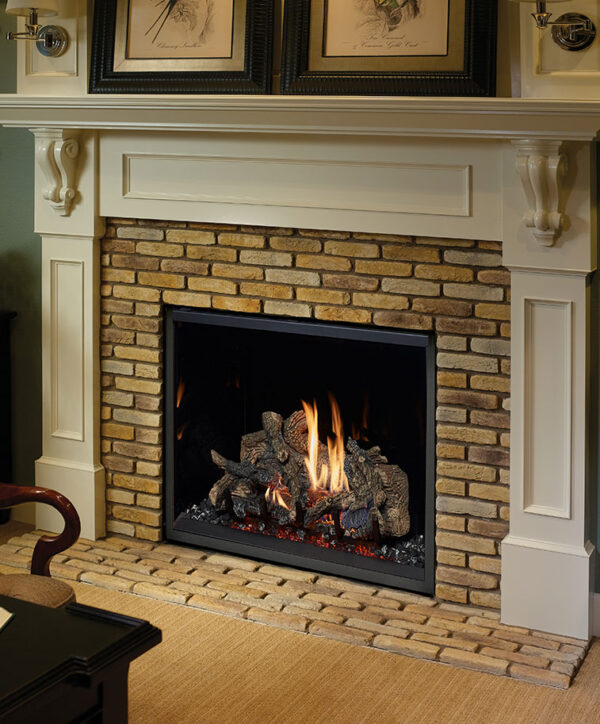

864 TRV 31k Clean Face:
No Trim
2″ Trim
Beveled Tile Trim

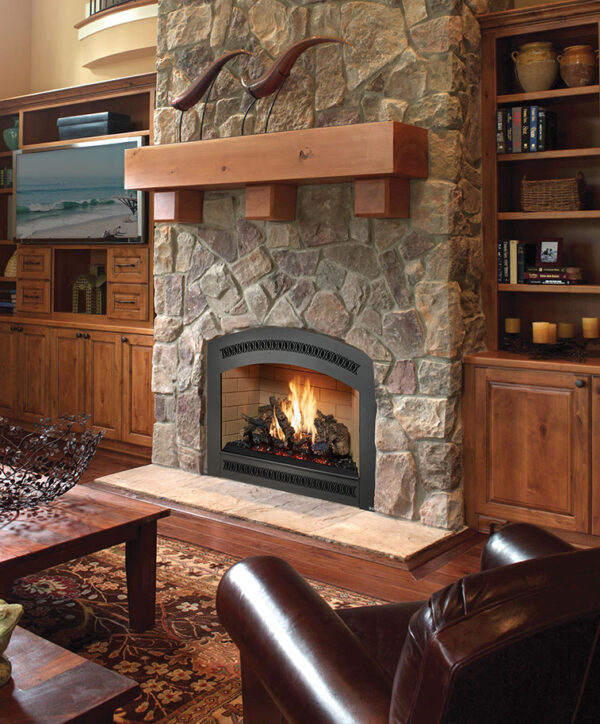

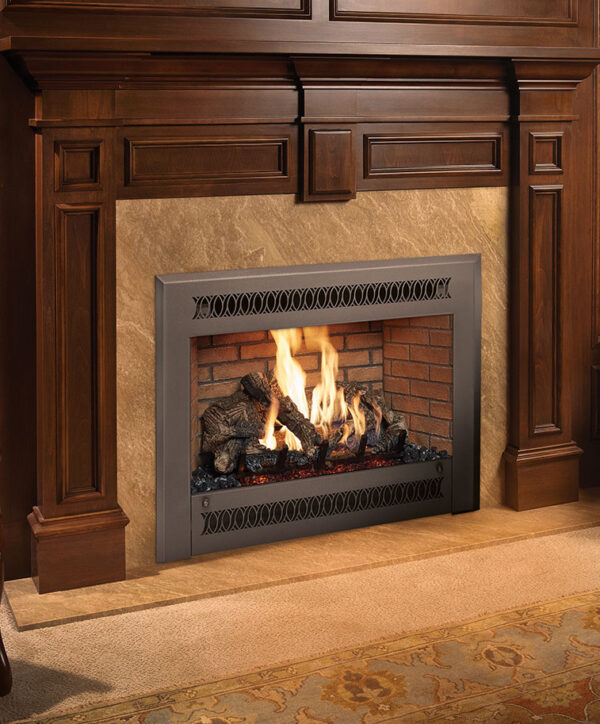

864 TV 40k Deluxe:
Classic Arch, Black Painted
French Country, Black Painted
Wilmington, Black Painted
Basic Grills, Black Painted
Mission Grills, Black Painted
Basic Louvers, Black Painted
Metropolitan, Black Painted
Rectangular Double Door, Black Painted
Timberline, Charcoal Painted
Ironworks, Charcoal Painted
Artisan, Charcoal Painted
Artisan, Bronze Patina
Metalsmith, Charcoal Painted

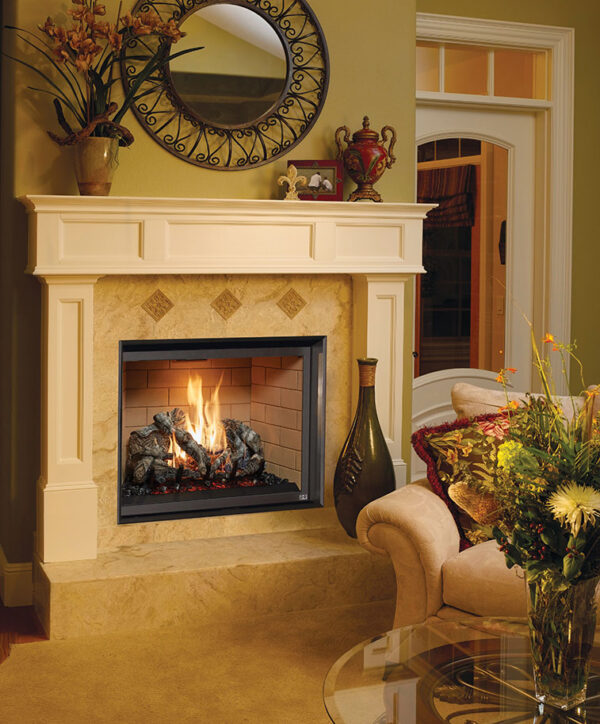

864 TV 40k Clean Face:
No Trim
2″ Trim
Beveled Tile Trim
Burner Choices
10 Piece Oak
10 Piece Birch
Additional Accessories
Custom Shop Faces, Coolsmart TV Wall Kit, Power Exhaust Kit
